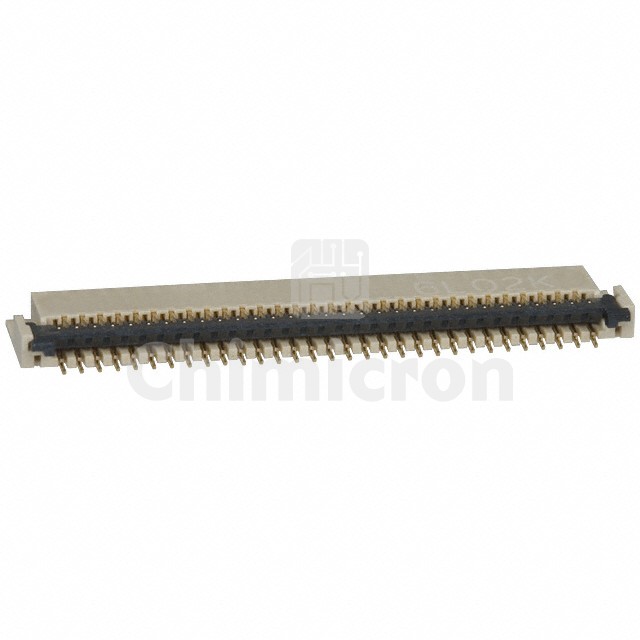

FH23-61S-0.3SHW(05)
Manufacturer: Hirose
Description: CONN FPC BOTTOM 61POS 0.30MM R/A
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: FH23
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FH23-61S-0.3SHW(05) Hirose at chimicron.com. We have 500000 pieces of FH23-61S-0.3SHW(05) in stock available now. Submit an inquiry for FH23-61S-0.3SHW(05) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFH23
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Bottom
Number of Positions61
Pitch0.012" (0.30mm)
TerminationSolder
FFC, FCB Thickness0.20mm
Height Above Board0.049" (1.25mm)
Locking FeatureFlip Lock
Cable End TypeTapered
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP), Halogen Free
Actuator MaterialLiquid Crystal Polymer (LCP), Halogen Free
FeaturesLow Insertion Force (LIF)
Voltage Rating30V
Operating Temperature-55°C ~ 85°C
Material Flammability RatingUL94 V-0
Related Parts for FH23-61S-0.3SHW(05)
