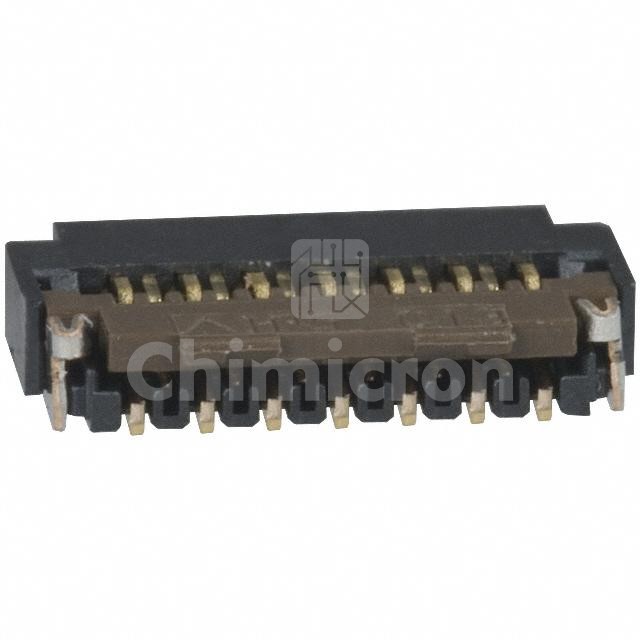

FH26W-13S-0.3SHW(60)
Manufacturer: Hirose
Description: CONN FPC/FFC 13POS .3MM
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: FH26
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FH26W-13S-0.3SHW(60) Hirose at chimicron.com. We have 1000 pieces of FH26W-13S-0.3SHW(60) in stock available now. Submit an inquiry for FH26W-13S-0.3SHW(60) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFH26
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Bottom
Number of Positions13
Pitch0.012" (0.30mm)
TerminationSolder
FFC, FCB Thickness0.20mm
Height Above Board0.039" (1.00mm)
Locking FeatureFlip Lock
Cable End TypeTapered
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP)
Actuator MaterialPolyamide (PA), Nylon
FeaturesZero Insertion Force (ZIF)
Voltage Rating30V
Operating Temperature-55°C ~ 85°C
Material Flammability RatingUL94 HB
