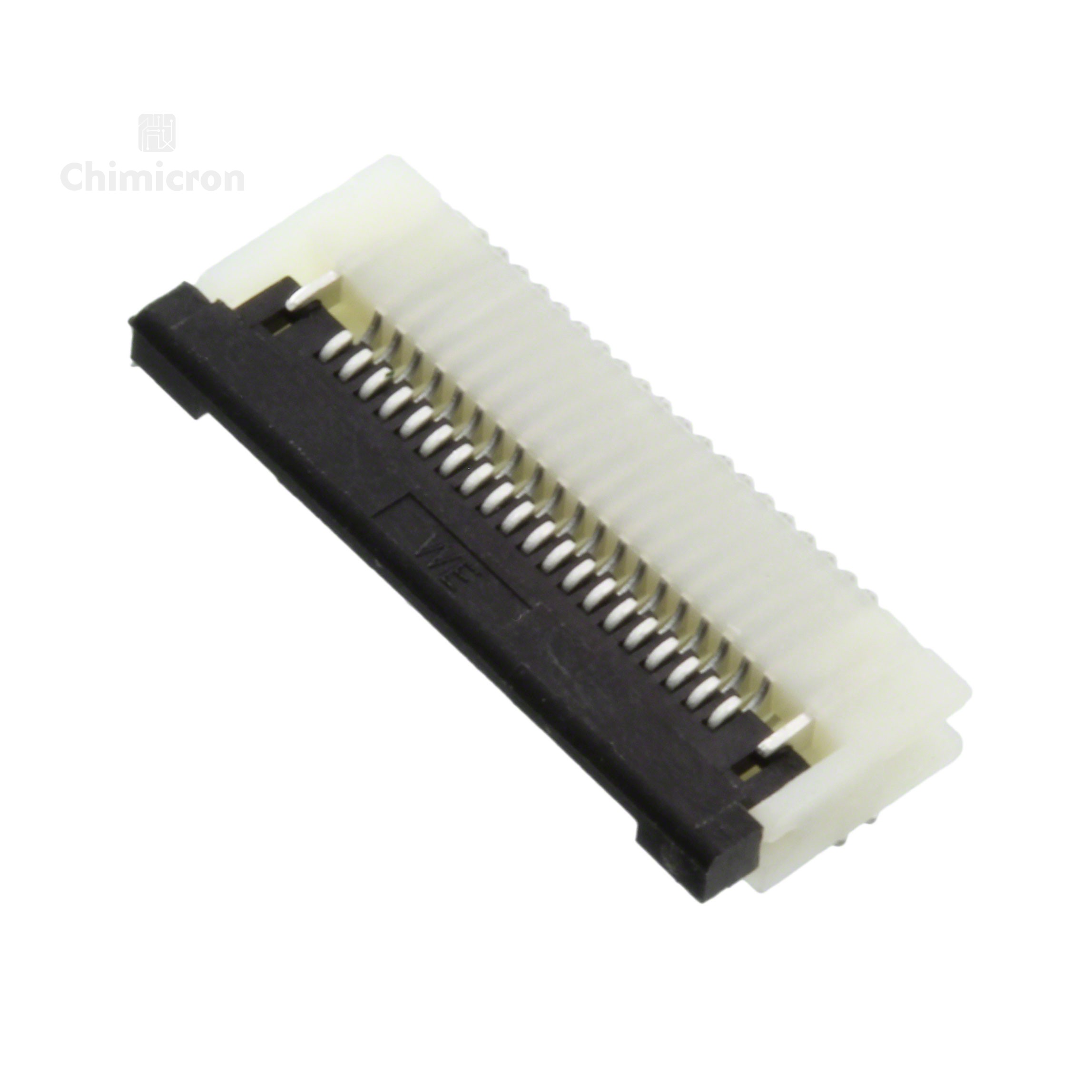

687120149022
Manufacturer: Würth Elektronik Midcom
Description: CONN .5MM HORZ BOTTOM SMD 20POS
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: WR-FPC
In Stock:3967
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 687120149022 Würth Elektronik Midcom at chimicron.com. We have 3967 pieces of 687120149022 in stock available now. Submit an inquiry for 687120149022 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesWR-FPC
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Bottom
Number of Positions20
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.087" (2.20mm)
Locking FeatureFlip Lock
Cable End TypeStraight
Contact MaterialPhosphor Bronze
Contact FinishTin
Housing MaterialPolyamide (PA6T), Nylon 6T
Actuator MaterialPolyamide (PA6T), Nylon 6T
FeaturesSolder Retention, Zero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-40°C ~ 105°C
Material Flammability RatingUL94 V-0
