5034801000
5034801000

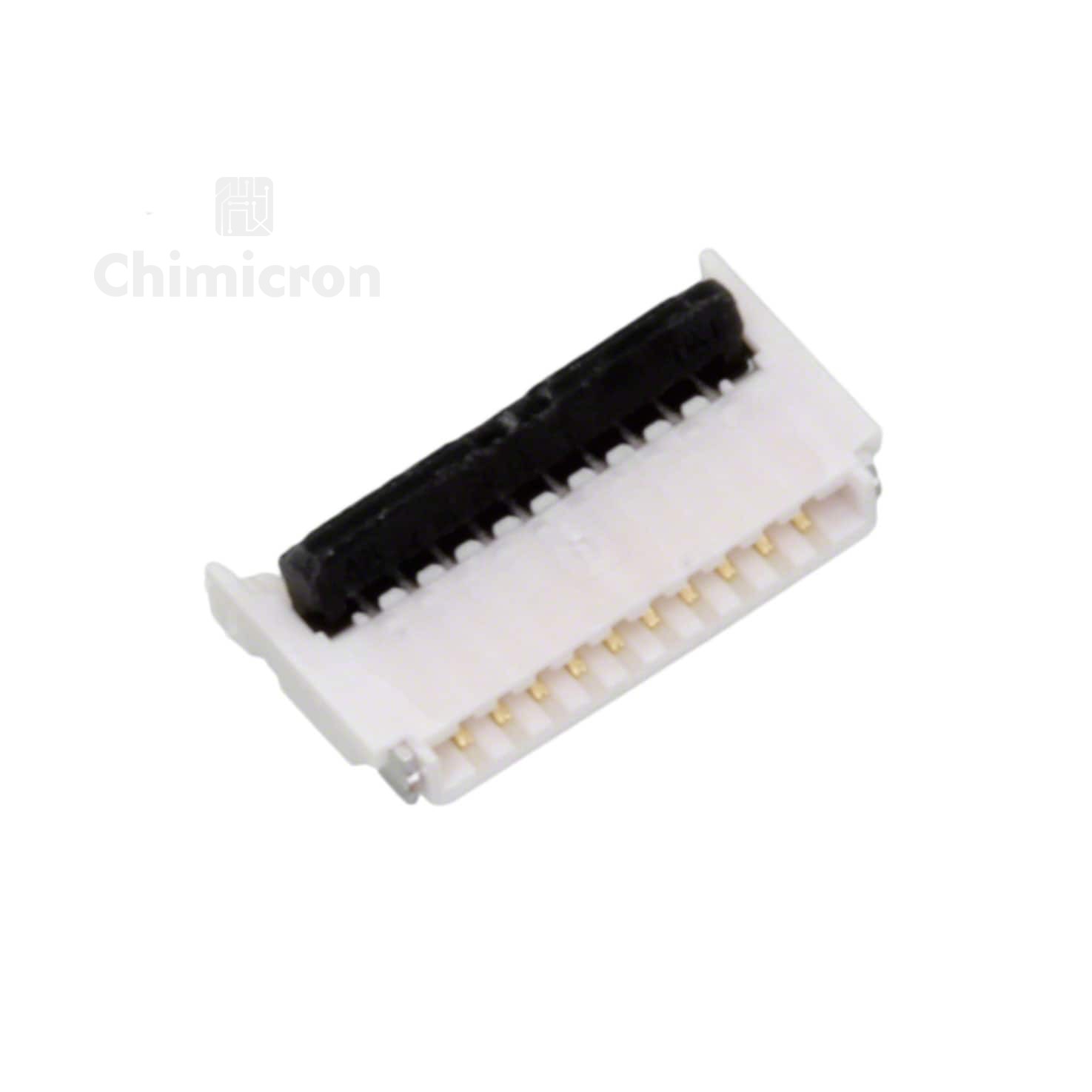

Manufacturer: Woodhead - Molex

Description: CONN FFC FPC 10POS 0.50MM R/A
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: BackFlip, Easy-On 503480 FHB1
In Stock:18900
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 5034801000 Woodhead - Molex at chimicron.com. We have 18900 pieces of 5034801000 in stock available now. Submit an inquiry for 5034801000 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesBackFlip, Easy-On 503480 FHB1
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top and Bottom
Number of Positions10
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.039" (1.00mm)
Locking FeatureFlip Lock, Backlock
Cable End TypeStraight, Tapered
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP), Glass Filled
Actuator MaterialPolyamide (PA), Nylon, Glass Filled
FeaturesSolder Retention
Voltage Rating50V
Operating Temperature-40°C ~ 85°C
Material Flammability RatingUL94 V-0, UL94 HB
