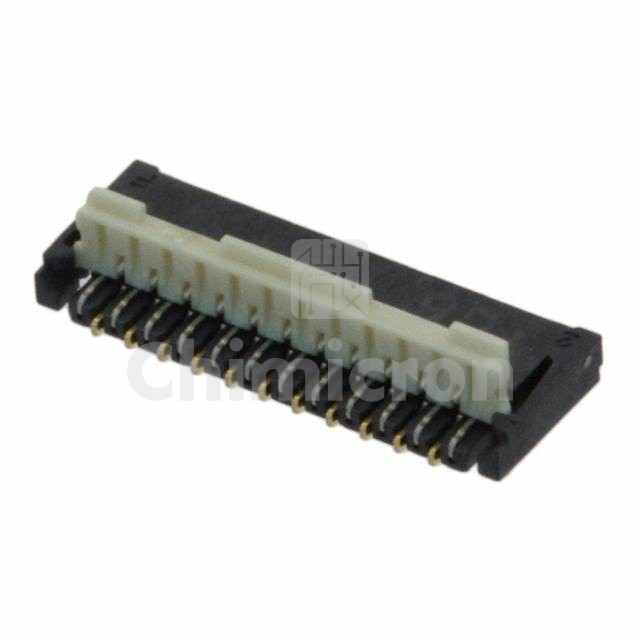

AYF332535
AYF332535

Manufacturer: Panasonic

Description: CONN FPC 25POS 0.30MM R/A
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: Y3B
Datasheets
In Stock:10000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AYF332535 Panasonic at chimicron.com. We have 10000 pieces of AYF332535 in stock available now. Submit an inquiry for AYF332535 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesY3B
PackageTape & Reel (TR)
Part StatusActive
Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top and Bottom
Number of Positions25
Pitch0.012" (0.30mm)
TerminationSolder
FFC, FCB Thickness0.20mm
Height Above Board0.035" (0.88mm)
Locking FeatureFlip Lock, Backlock
Cable End TypeTapered
Contact MaterialCopper Alloy
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP)
Actuator MaterialLiquid Crystal Polymer (LCP)
Features-
Voltage Rating50V
Operating Temperature-55°C ~ 85°C
Material Flammability RatingUL94 V-0
