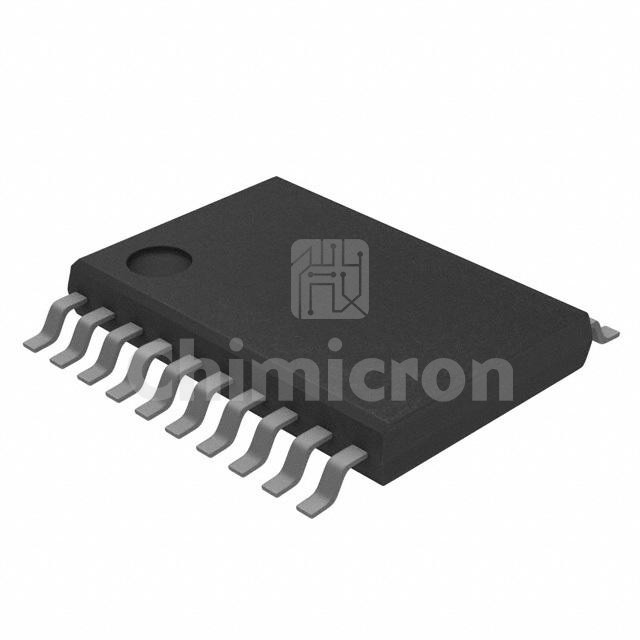

MC9S08SH4CTJR
Manufacturer: NXP Semiconductors
Description: IC MCU 8BIT 4KB FLASH 20TSSOP
Category : Integrated Circuits
Family: Embedded - Microcontrollers
Series: S08
In Stock:46000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MC9S08SH4CTJR NXP Semiconductors at chimicron.com. We have 46000 pieces of MC9S08SH4CTJR in stock available now. Submit an inquiry for MC9S08SH4CTJR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesS08
PackageTape & Reel (TR)
Part StatusActive
Core ProcessorS08
Core Size8-Bit
Speed40MHz
ConnectivityI²C, LINbus, SCI, SPI
PeripheralsLVD, POR, PWM, WDT
Number of I/O17
Program Memory Size4KB (4K x 8)
Program Memory TypeFLASH
EEPROM Size-
RAM Size256 x 8
Voltage - Supply (Vcc/Vdd)2.7V ~ 5.5V
Data ConvertersA/D 12x10b
Oscillator TypeInternal
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package20-TSSOP
