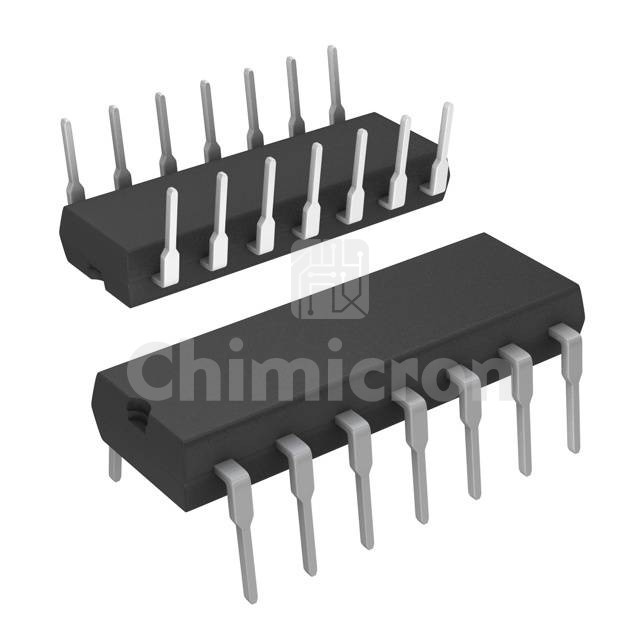

PIC16F684-E/P
Manufacturer: Roving Networks / Microchip Technology
Description: IC MCU 8BIT 3.5KB FLASH 14DIP
Category : Integrated Circuits
Family: Embedded - Microcontrollers
Series: PIC® 16F
In Stock:284
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PIC16F684-E/P Roving Networks / Microchip Technology at chimicron.com. We have 284 pieces of PIC16F684-E/P in stock available now. Submit an inquiry for PIC16F684-E/P or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPIC® 16F
PackageTube
Part StatusActive
Core ProcessorPIC
Core Size8-Bit
Speed20MHz
Connectivity-
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Number of I/O12
Program Memory Size3.5KB (2K x 14)
Program Memory TypeFLASH
EEPROM Size256 x 8
RAM Size128 x 8
Voltage - Supply (Vcc/Vdd)2V ~ 5.5V
Data ConvertersA/D 8x10b
Oscillator TypeInternal
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device Package14-PDIP
