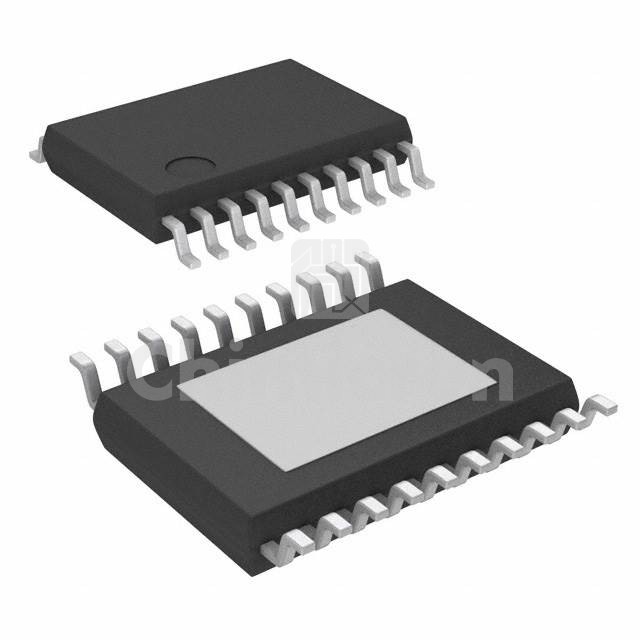

TPS7B6701QPWPRQ1
Manufacturer: Texas
Description: IC REG LIN POS ADJ 20HTSSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: Automotive, AEC-Q100
In Stock:99475
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS7B6701QPWPRQ1 Texas at chimicron.com. We have 99475 pieces of TPS7B6701QPWPRQ1 in stock available now. Submit an inquiry for TPS7B6701QPWPRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)1.5V
Voltage - Output (Max)18V
Voltage Dropout (Max)0.3V @ 200mA
Current - Output450mA
Current - Quiescent (Iq)25 µA
Current - Supply (Max)35 µA
PSRR60dB ~ 40dB (100Hz ~ 100kHz)
Control FeaturesEnable, Reset
Protection FeaturesOver Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 150°C
Mounting TypeSurface Mount
Package / Case20-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package20-HTSSOP
