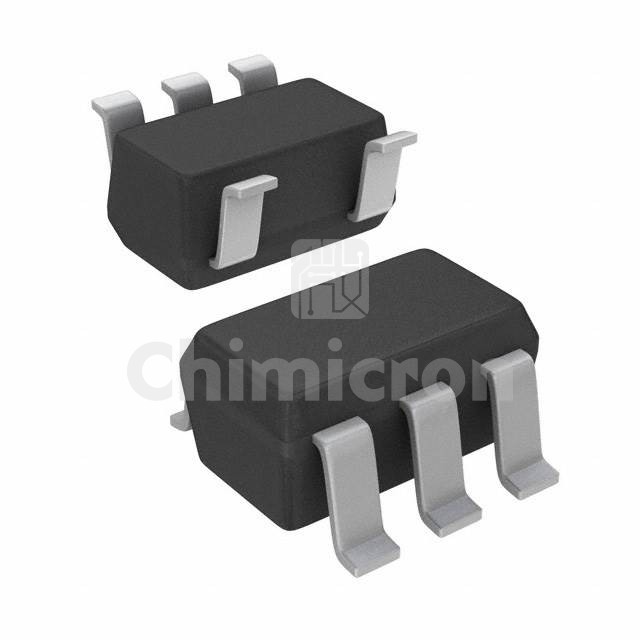

TPS72301DBVT
Manufacturer: Texas
Description: IC REG LIN NEG ADJ 200MA SOT23-5
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS72301DBVT Texas at chimicron.com. We have 2000 pieces of TPS72301DBVT in stock available now. Submit an inquiry for TPS72301DBVT or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationNegative
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)-10V
Voltage - Output (Min/Fixed)-1.2V
Voltage - Output (Max)-10V
Voltage Dropout (Max)0.5V @ 200mA
Current - Output200mA
Current - Quiescent (Iq)200 µA
Current - Supply (Max)500 µA
PSRR65dB ~ 48dB (1kHz ~ 10kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
