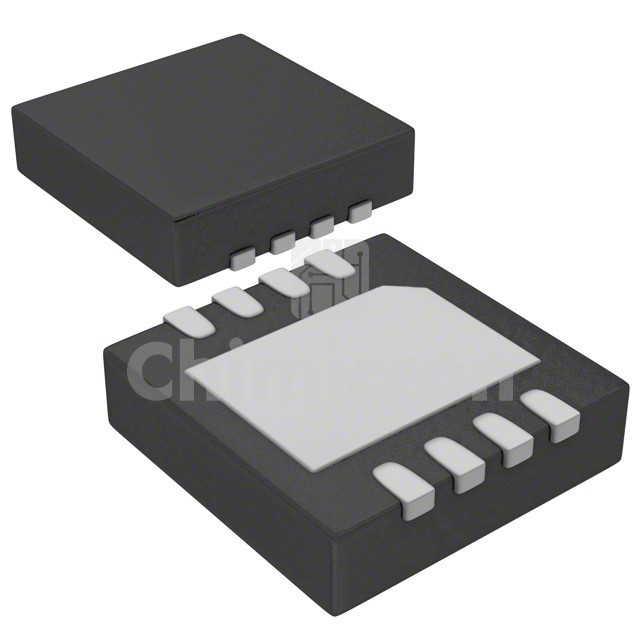

ADP7105ACPZ-R7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG LIN POS ADJ 500MA 8LFCSP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:4743
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADP7105ACPZ-R7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 4743 pieces of ADP7105ACPZ-R7 in stock available now. Submit an inquiry for ADP7105ACPZ-R7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)1.22V
Voltage - Output (Max)19V
Voltage Dropout (Max)0.55V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)900 µA
Current - Supply (Max)1.6 mA
PSRR80dB ~ 50dB (10kHz ~ 100kHz)
Control FeaturesEnable, Power Good, Under Voltage Lockout
Protection FeaturesOver Current, Over Temperature, Reverse Polarity
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-WFDFN Exposed Pad, CSP
Supplier Device Package8-LFCSP-WD (3x3)
