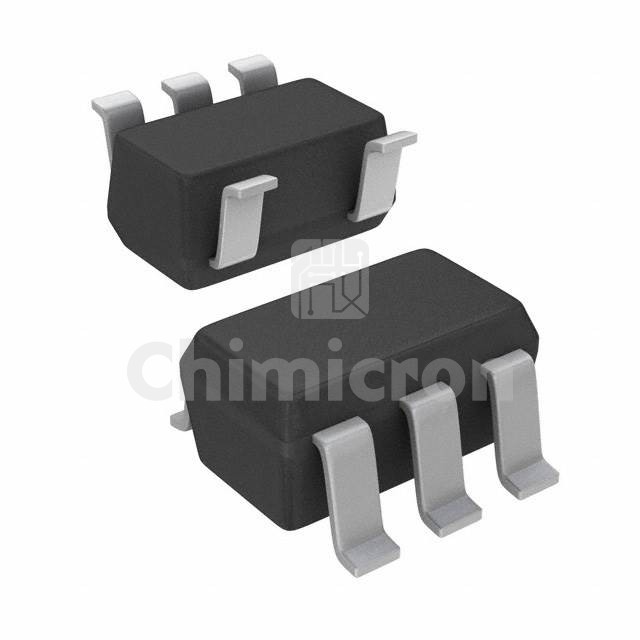

TPS70936DBVR
TPS70936DBVR

Manufacturer: Texas

Description: IC REG LINEAR 3.6V 150MA SOT23-5
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:9030
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS70936DBVR Texas at chimicron.com. We have 9030 pieces of TPS70936DBVR in stock available now. Submit an inquiry for TPS70936DBVR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)30V
Voltage - Output (Min/Fixed)3.6V
Voltage - Output (Max)-
Voltage Dropout (Max)1.4V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)2.05 µA
Current - Supply (Max)350 µA
PSRR80dB ~ 52dB (10Hz ~ 1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
