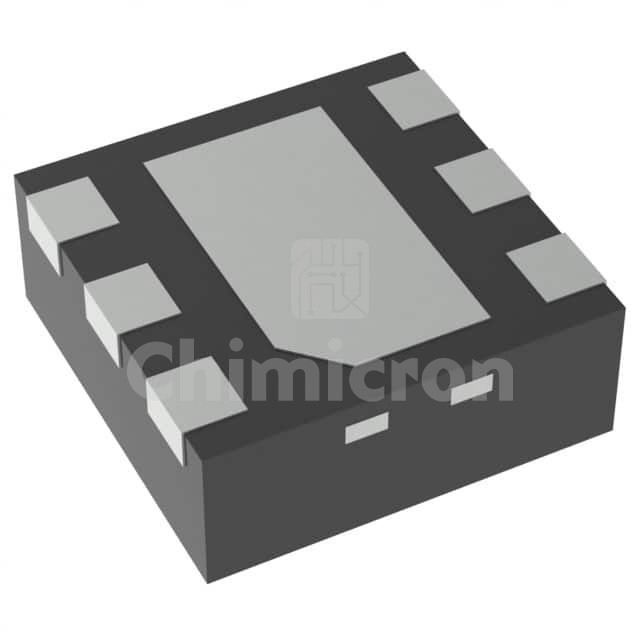

TPS7A2501DRVR
TPS7A2501DRVR

Manufacturer: Texas

Description: IC REG LIN POS ADJ 300MA 6WSON
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:55000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS7A2501DRVR Texas at chimicron.com. We have 55000 pieces of TPS7A2501DRVR in stock available now. Submit an inquiry for TPS7A2501DRVR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)18V
Voltage - Output (Min/Fixed)1.24V
Voltage - Output (Max)17.66V
Voltage Dropout (Max)0.34V @ 300mA
Current - Output300mA
Current - Quiescent (Iq)4.5 µA
Current - Supply (Max)15 µA
PSRR75dB ~ 52dB (10Hz ~ 1kHz)
Control FeaturesEnable, Power Good
Protection FeaturesOver Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WSON (2x2)
