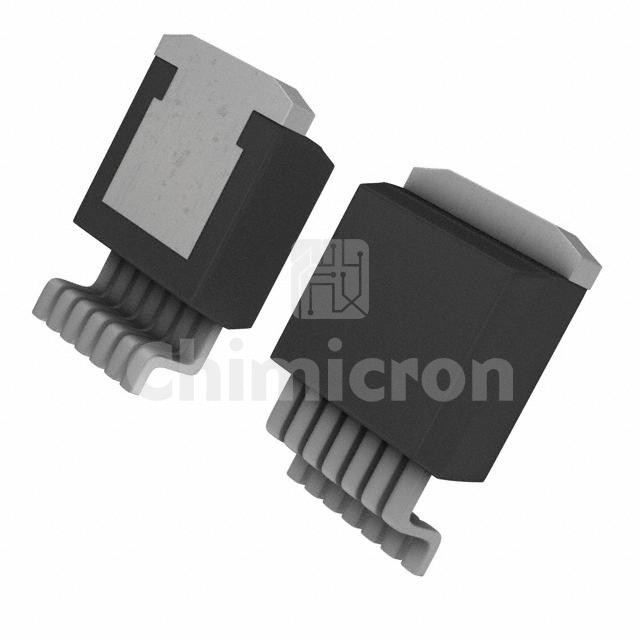

LT3091HR#PBF
LT3091HR#PBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC REG LIN NEG ADJ 1.5A 7DDPAK
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:599
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LT3091HR#PBF Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 599 pieces of LT3091HR#PBF in stock available now. Submit an inquiry for LT3091HR#PBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationNegative
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)-36V
Voltage - Output (Min/Fixed)0V
Voltage - Output (Max)-32V
Voltage Dropout (Max)0.525V @ 1.5A
Current - Output1.5A
Current - Quiescent (Iq)50.5 µA
Current - Supply (Max)-
PSRR85dB ~ 20dB (120Hz ~ 1MHz)
Control FeaturesCurrent Limit, Enable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package7-DDPAK
