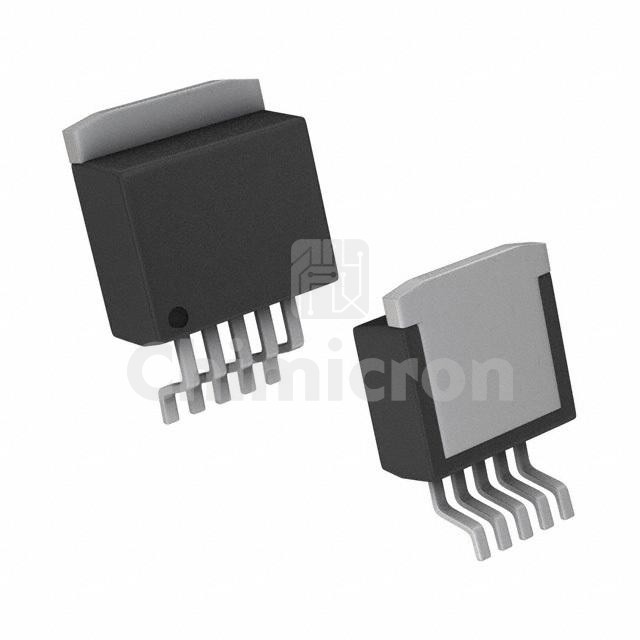

LP3856ES-3.3
Manufacturer: Texas
Description: IC REG LIN 3.3V 3A DDPAK/TO263-5
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:80000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LP3856ES-3.3 Texas at chimicron.com. We have 80000 pieces of LP3856ES-3.3 in stock available now. Submit an inquiry for LP3856ES-3.3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusNot For New Designs
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)7V
Voltage - Output (Min/Fixed)3.3V
Voltage - Output (Max)-
Voltage Dropout (Max)0.6V @ 3A
Current - Output3A
Current - Quiescent (Iq)4 mA
Current - Supply (Max)10 mA
PSRR73dB ~ 57dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device PackageDDPAK/TO-263-5
