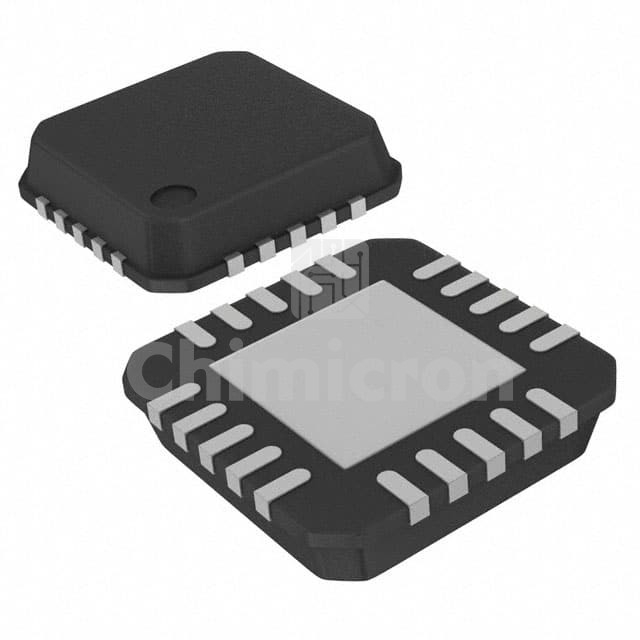

TPS7A5301WQRTKRQ1
Manufacturer: Texas
Description: IC REG LINEAR POS ADJ 3A 20VQFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: Automotive, AEC-Q100
In Stock:25468
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS7A5301WQRTKRQ1 Texas at chimicron.com. We have 25468 pieces of TPS7A5301WQRTKRQ1 in stock available now. Submit an inquiry for TPS7A5301WQRTKRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)6.5V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)5.15V
Voltage Dropout (Max)0.515V @ 3A
Current - Output3A
Current - Quiescent (Iq)-
Current - Supply (Max)-
PSRR42dB ~ 25dB (10kHz ~ 500kHz)
Control FeaturesEnable
Protection FeaturesOver Temperature, Reverse Polarity
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case20-VFQFN Exposed Pad
Supplier Device Package20-VQFN-EP (4x4)
