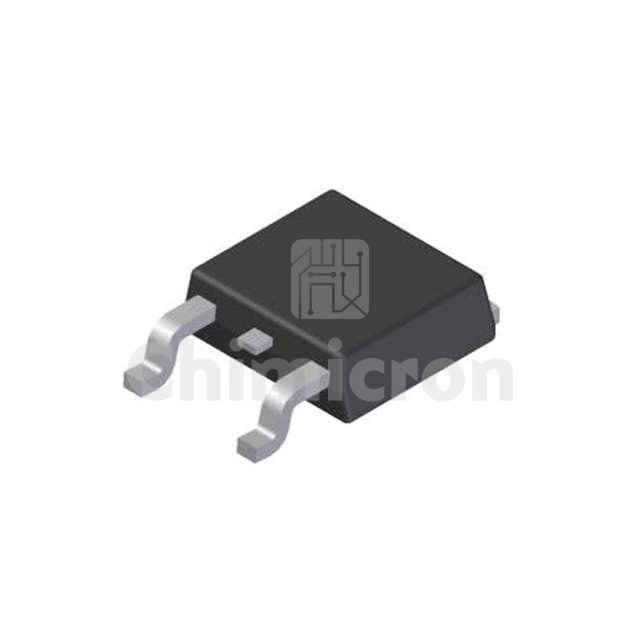

AZ1117D-ADJTRE1
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: IC REG LINEAR POS ADJ 1A TO252-2
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: AZ1117
In Stock:3328
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AZ1117D-ADJTRE1 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 3328 pieces of AZ1117D-ADJTRE1 in stock available now. Submit an inquiry for AZ1117D-ADJTRE1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAZ1117
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)13.75V
Voltage Dropout (Max)1.25V @ 1A
Current - Output1A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)-
PSRR75dB (120Hz)
Control Features-
Protection FeaturesThermal Shutdown
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageTO-252-3
