LM1117S-ADJ
Manufacturer: Texas
Description: IC REG LIN POS ADJ 800MA DDPAK
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:1680
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM1117S-ADJ Texas at chimicron.com. We have 1680 pieces of LM1117S-ADJ in stock available now. Submit an inquiry for LM1117S-ADJ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)13.8V
Voltage Dropout (Max)1.2V @ 800mA
Current - Output800mA
Current - Quiescent (Iq)5 mA
Current - Supply (Max)10 mA
PSRR75dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount

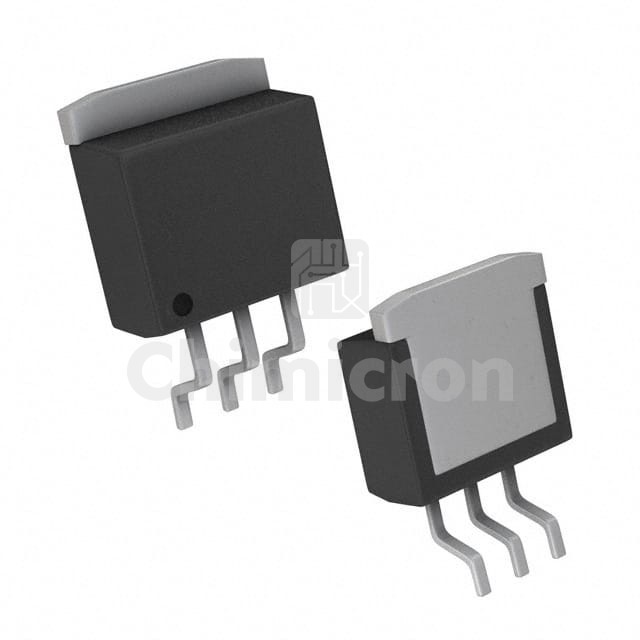

Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device PackageDDPAK/TO-263-3
