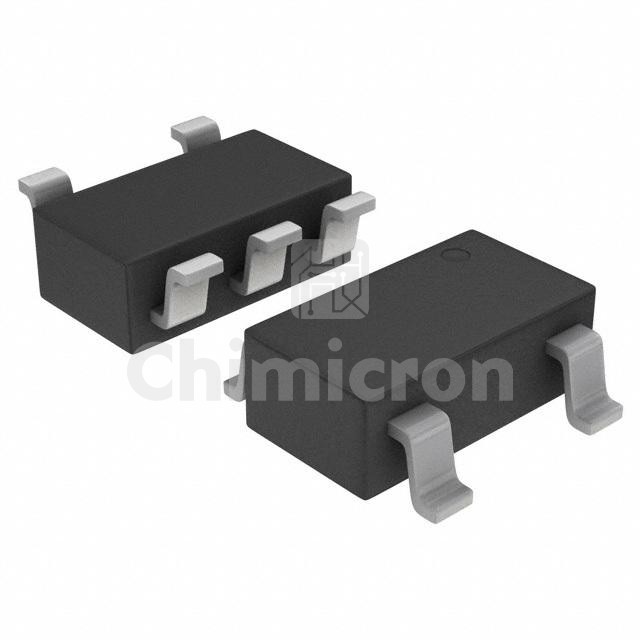

NCV8560SNADJT1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC REG LIN POS ADJ 150MA 5TSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: Automotive, AEC-Q100
In Stock:21959
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NCV8560SNADJT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 21959 pieces of NCV8560SNADJT1G in stock available now. Submit an inquiry for NCV8560SNADJT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)5V
Voltage Dropout (Max)0.125V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)135 µA
Current - Supply (Max)-
PSRR62dB ~ 38dB (120Hz ~ 10kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSOT-23-5 Thin, TSOT-23-5
Supplier Device Package5-TSOP
