NCV5504DTRKG
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC REG LINEAR POS ADJ DPAK-5
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: Automotive, AEC-Q100
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NCV5504DTRKG Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 5000 pieces of NCV5504DTRKG in stock available now. Submit an inquiry for NCV5504DTRKG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable (Fixed)
Number of Regulators2
Voltage - Input (Max)18V
Voltage - Output (Min/Fixed)1.25V (3.3V)
Voltage - Output (Max)5V
Voltage Dropout (Max)0.4V @ 250mA, 0.4V @ 250mA
Current - Output250mA, 250mA
Current - Quiescent (Iq)450 µA
Current - Supply (Max)20 mA
PSRR75dB ~ 60dB (120Hz ~ 1kHz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 150°C
Mounting TypeSurface Mount

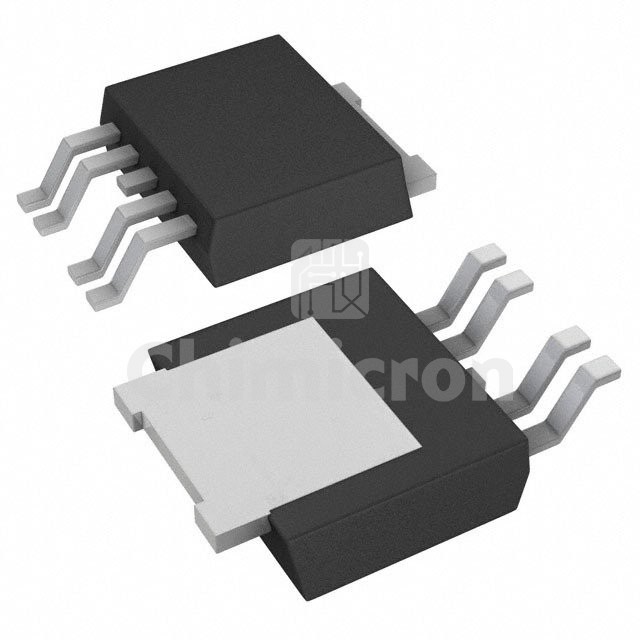

Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device PackageDPAK-5
