ST715PUR
Manufacturer: STMicroelectronics
Description: IC REG LINEAR POS ADJ 85MA 8DFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:2413200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ST715PUR STMicroelectronics at chimicron.com. We have 2413200 pieces of ST715PUR in stock available now. Submit an inquiry for ST715PUR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)24V
Voltage - Output (Min/Fixed)1.2V
Voltage - Output (Max)23V
Voltage Dropout (Max)1V @ 85mA
Current - Output85mA
Current - Quiescent (Iq)5.5 µA
Current - Supply (Max)6.5 µA
PSRR62dB ~ 45dB (100kHz ~ 1kHz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount

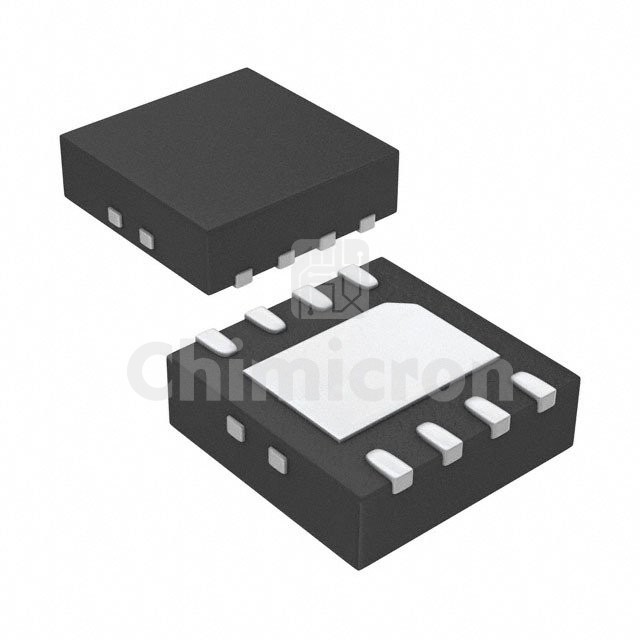

Package / Case8-VDFN Exposed Pad
Supplier Device Package8-DFN (3x3)
