TPS70302PWPR
Manufacturer: Texas
Description: IC REG LINEAR POS ADJ 24HTSSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:31500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS70302PWPR Texas at chimicron.com. We have 31500 pieces of TPS70302PWPR in stock available now. Submit an inquiry for TPS70302PWPR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators2
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)1.22V
Voltage - Output (Max)5.5V
Voltage Dropout (Max)0.25V @ 1A, -
Current - Output1A, 2A
Current - Quiescent (Iq)250 µA
Current - Supply (Max)-
PSRR65dB (1kHz), 60dB (1kHz)
Control FeaturesEnable, Power Good, Reset, Sequencing
Protection FeaturesOver Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount

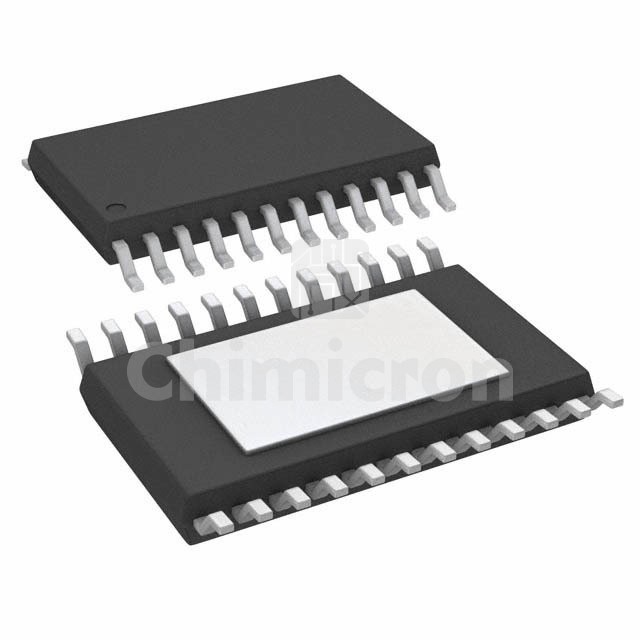

Package / Case24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package24-HTSSOP
