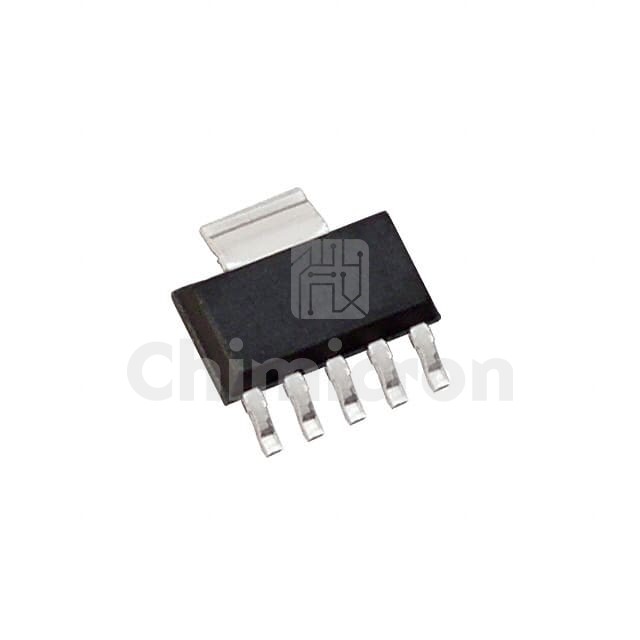

TPS72501DCQ
Manufacturer: Texas
Description: IC REG LIN POS ADJ 1A SOT223-6
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS72501DCQ Texas at chimicron.com. We have 500000 pieces of TPS72501DCQ in stock available now. Submit an inquiry for TPS72501DCQ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)1.22V
Voltage - Output (Max)5.5V
Voltage Dropout (Max)0.28V @ 1A
Current - Output1A
Current - Quiescent (Iq)225 µA
Current - Supply (Max)325 µA
PSRR60dB (1kHz)
Control FeaturesEnable, Reset
Protection FeaturesOver Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSOT-223-6
Supplier Device PackageSOT-223-6
