TLV75101PDSQR
Manufacturer: Texas
Description: IC REG LIN POS ADJ 500MA 10WSON
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:27174
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLV75101PDSQR Texas at chimicron.com. We have 27174 pieces of TLV75101PDSQR in stock available now. Submit an inquiry for TLV75101PDSQR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators2
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)0.55V
Voltage - Output (Max)5.5V
Voltage Dropout (Max)0.88V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)35 µA
Current - Supply (Max)-
PSRR50dB ~ 30dB (1kHz ~ 1MHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount

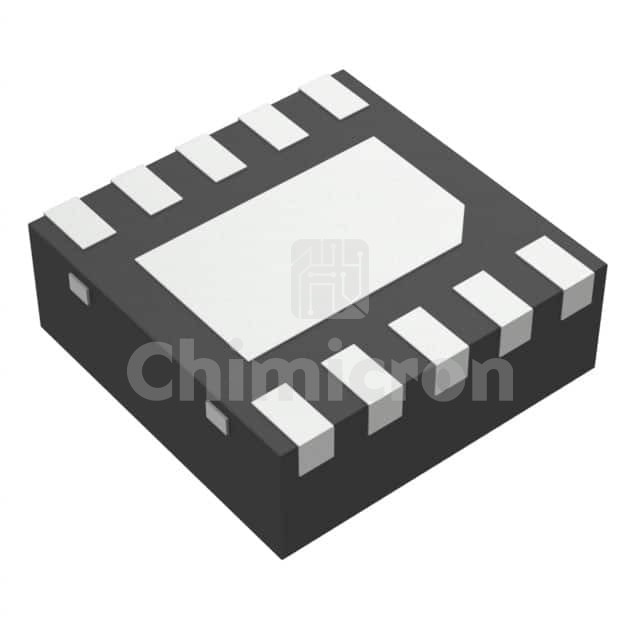

Package / Case10-WFDFN Exposed Pad
Supplier Device Package10-WSON (2x2)
