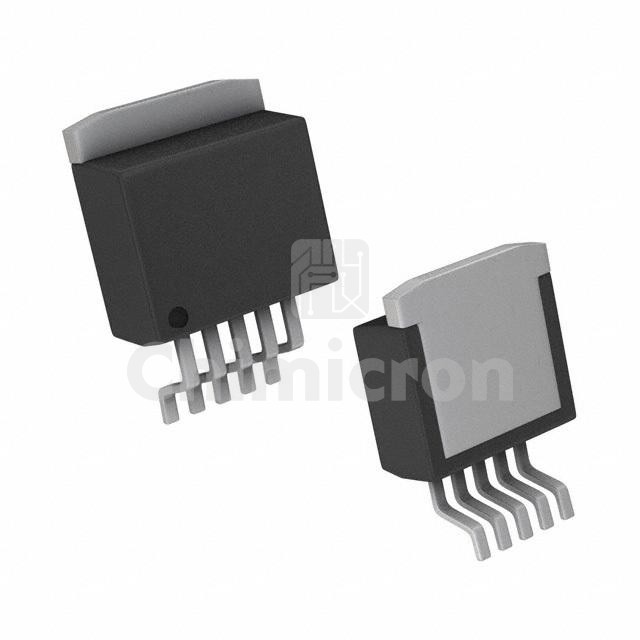

LM2941SX
Manufacturer: Texas
Description: IC REG LINEAR POS ADJ 1A DDPAK
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM2941SX Texas at chimicron.com. We have 50000 pieces of LM2941SX in stock available now. Submit an inquiry for LM2941SX or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)20V
Voltage Dropout (Max)1V @ 1A
Current - Output1A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)15 mA
PSRR-
Control FeaturesEnable
Protection FeaturesOver Temperature, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device PackageDDPAK/TO-263-5
