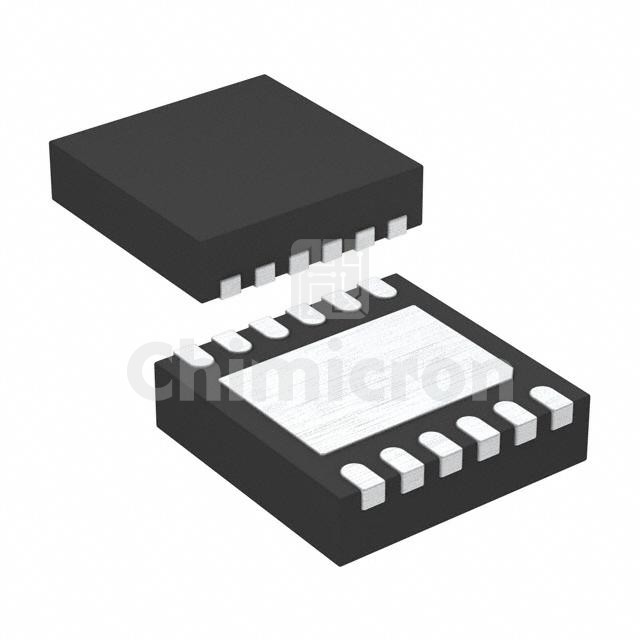

LT3094EDD#PBF
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG LIN NEG ADJ 500MA 12DFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:4725
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LT3094EDD#PBF Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 4725 pieces of LT3094EDD#PBF in stock available now. Submit an inquiry for LT3094EDD#PBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationNegative
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)-2.3V
Voltage - Output (Min/Fixed)-19.5V
Voltage - Output (Max)0V
Voltage Dropout (Max)0.41V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)2.35 mA
Current - Supply (Max)23 mA
PSRR108dB ~ 28dB (120Hz ~ 10MHz)
Control FeaturesEnable, Power Good, Soft Start
Protection FeaturesOver Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case12-WFDFN Exposed Pad
Supplier Device Package12-DFN (3x3)
