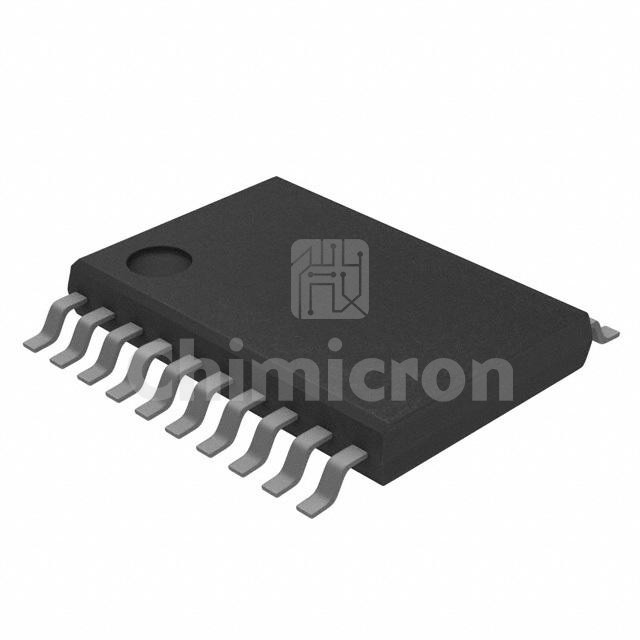

TLC3544CPWG4
Manufacturer: Texas
Description: IC ADC 14BIT SAR 20TSSOP
Category : Integrated Circuits
Family: Data Acquisition - Analog to Digital Converters (ADC)
Series: -
In Stock:100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLC3544CPWG4 Texas at chimicron.com. We have 100 pieces of TLC3544CPWG4 in stock available now. Submit an inquiry for TLC3544CPWG4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Bits14
Sampling Rate (Per Second)200k
Number of Inputs2, 4
Input TypePseudo-Differential, Single Ended
Data InterfaceSPI
ConfigurationMUX-S/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitectureSAR
Reference TypeExternal, Internal
Voltage - Supply, Analog5V
Voltage - Supply, Digital2.7V ~ 5.5V
Features-
Operating Temperature0°C ~ 70°C
Package / Case20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package20-TSSOP
Mounting TypeSurface Mount
