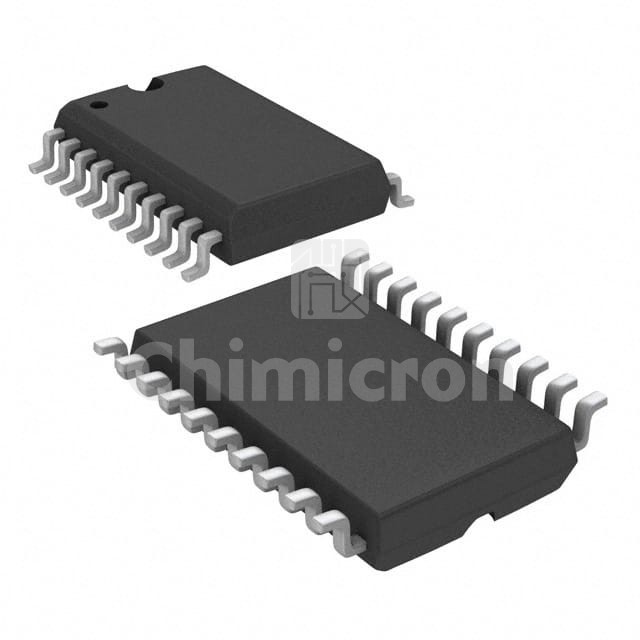

TLC2543CDWR
TLC2543CDWR

Manufacturer: Texas

Description: IC ADC 12BIT SAR 20SOIC
Category : Integrated Circuits
Family: Data Acquisition - Analog to Digital Converters (ADC)
Series: -
In Stock:5250
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLC2543CDWR Texas at chimicron.com. We have 5250 pieces of TLC2543CDWR in stock available now. Submit an inquiry for TLC2543CDWR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Bits12
Sampling Rate (Per Second)66k
Number of Inputs11
Input TypeSingle Ended
Data InterfaceSPI
ConfigurationMUX-S/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitectureSAR
Reference TypeExternal
Voltage - Supply, Analog5V
Voltage - Supply, Digital5V
Features-
Operating Temperature0°C ~ 70°C
Package / Case20-SOIC (0.295", 7.50mm Width)
Supplier Device Package20-SOIC
Mounting TypeSurface Mount
