AD7949BCPZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC ADC 14BIT SAR 20LFCSP-WQ
Category : Integrated Circuits
Family: Data Acquisition - Analog to Digital Converters (ADC)
Series: PulSAR®
In Stock:1050
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AD7949BCPZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1050 pieces of AD7949BCPZ in stock available now. Submit an inquiry for AD7949BCPZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPulSAR®
PackageTray
Part StatusActive
Number of Bits14
Sampling Rate (Per Second)250k
Number of Inputs8
Input TypeDifferential, Pseudo-Differential, Single Ended
Data InterfaceSPI, DSP
ConfigurationMUX-S/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitectureSAR
Reference TypeExternal, Internal
Voltage - Supply, Analog2.3V ~ 5.5V
Voltage - Supply, Digital2.3V ~ 5.5V
FeaturesTemperature Sensor
Operating Temperature-40°C ~ 85°C

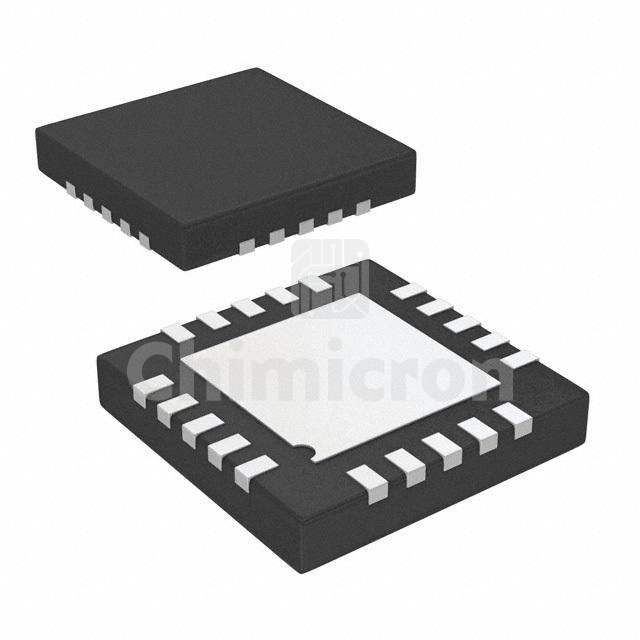

Package / Case20-WFQFN Exposed Pad, CSP
Supplier Device Package20-LFCSP-WQ (4x4)
Mounting TypeSurface Mount
