MAX503EAG
Manufacturer: Rochester Electronics
Description: PARALLEL-INPUT, VOLTAGE-OUT
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: -
In Stock:600
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX503EAG Rochester Electronics at chimicron.com. We have 600 pieces of MAX503EAG in stock available now. Submit an inquiry for MAX503EAG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Bits10
Number of D/A Converters1
Settling Time25µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog±5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±0.5 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C

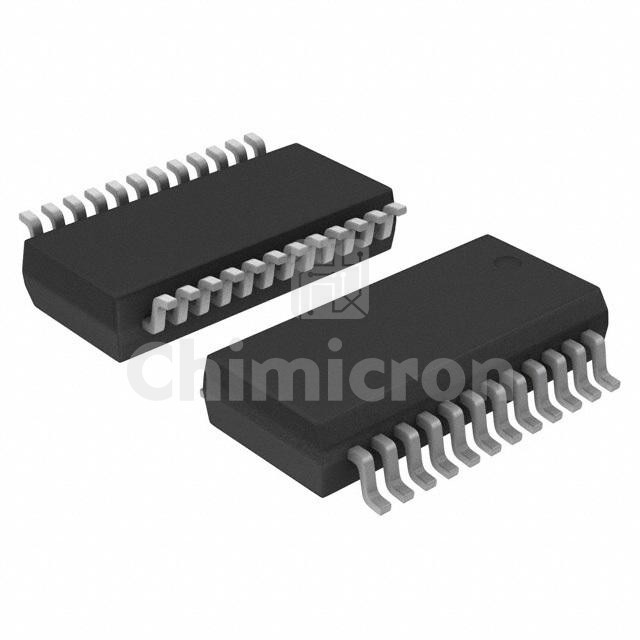

Package / Case24-SSOP (0.209", 5.30mm Width)
Supplier Device Package24-SSOP
Mounting TypeSurface Mount
