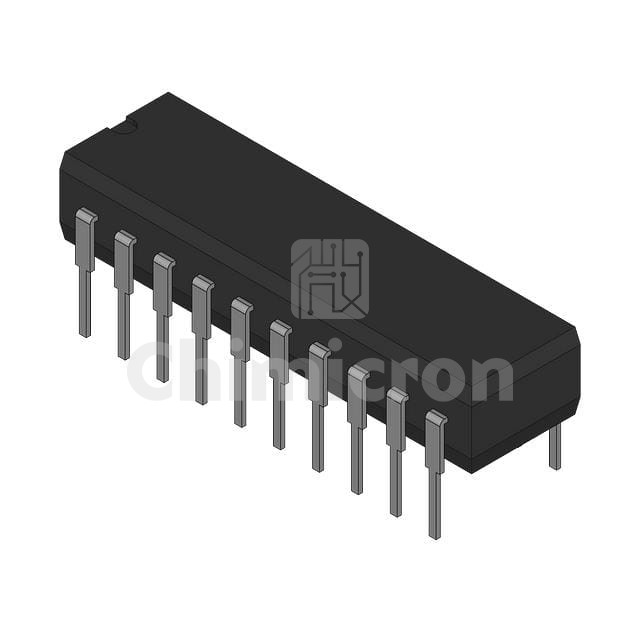

AD7534JN
Manufacturer: Rochester Electronics
Description: DAC, PARALLEL, 8 BITS INPUT
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: -
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AD7534JN Rochester Electronics at chimicron.com. We have 20000 pieces of AD7534JN in stock available now. Submit an inquiry for AD7534JN or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Bits14
Number of D/A Converters1
Settling Time1.5µs
Output TypeCurrent - Unbuffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog11.4V ~ 15.75V
Voltage - Supply, Digital11.4V ~ 15.75V
INL/DNL (LSB)±2 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature0°C ~ 70°C
Package / Case20-DIP (0.300", 7.62mm)
Supplier Device Package20-PDIP
Mounting TypeThrough Hole
