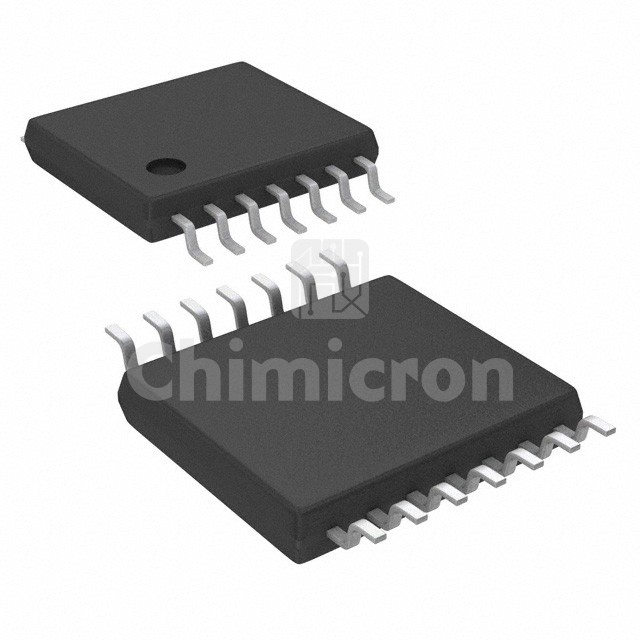

MAX5815BAUD+T
Manufacturer: Maxim Integrated
Description: IC DAC 12BIT 14TSSOP
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: -
In Stock:13860
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX5815BAUD+T Maxim Integrated at chimicron.com. We have 13860 pieces of MAX5815BAUD+T in stock available now. Submit an inquiry for MAX5815BAUD+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Number of Bits12
Number of D/A Converters4
Settling Time4.5µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceI²C
Reference TypeExternal, Internal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±0.5, ±0.2
ArchitectureR-2R
Operating Temperature-40°C ~ 125°C
Package / Case14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package14-TSSOP
Mounting TypeSurface Mount
Related Parts for MAX5815BAUD+T
Linear Technology (Analog Devices, Inc.)
LTC2632ACTS8-HI12#TRMPBFIC DAC 12BIT V-OUT TSOT23-8
In Stock: 840
