AD5686RACPZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC DAC 16BIT V-OUT 16LFCSP
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: nanoDAC+®
In Stock:945
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AD5686RACPZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 945 pieces of AD5686RACPZ-RL7 in stock available now. Submit an inquiry for AD5686RACPZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesnanoDAC+®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Bits16
Number of D/A Converters4
Settling Time8µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI, DSP
Reference TypeExternal, Internal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital1.8V ~ 5.5V
INL/DNL (LSB)±2, ±1 (Max)
ArchitectureString DAC
Operating Temperature-40°C ~ 105°C

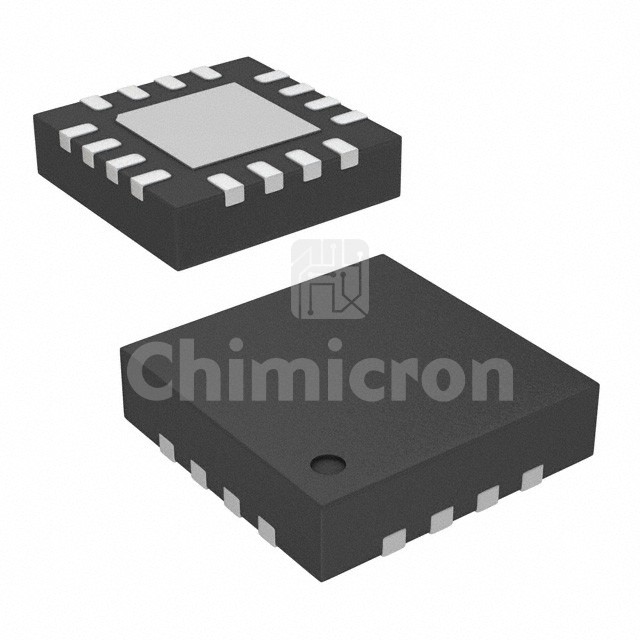

Package / Case16-WFQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-WQ (3x3)
Mounting TypeSurface Mount
