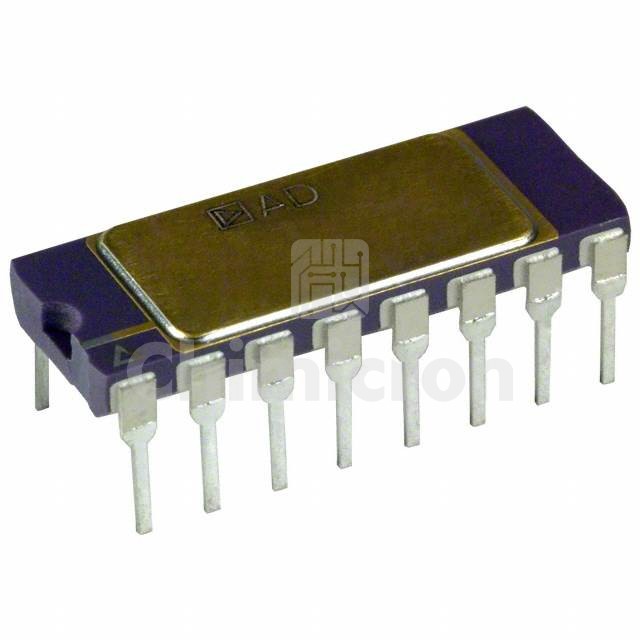

AD558SD
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC DAC 8BIT V-OUT 16CDIP
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: DACPORT®
In Stock:1200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AD558SD Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1200 pieces of AD558SD in stock available now. Submit an inquiry for AD558SD or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesDACPORT®
PackageTube
Part StatusActive
Number of Bits8
Number of D/A Converters1
Settling Time3µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeInternal
Voltage - Supply, Analog4.5V ~ 16.5V
Voltage - Supply, Digital4.5V ~ 16.5V
INL/DNL (LSB)±0.75 (Max), -
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
Mounting TypeThrough Hole
