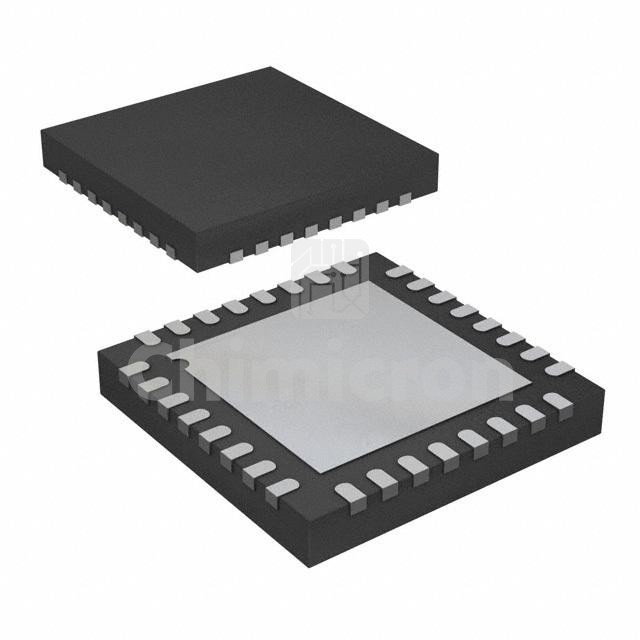

AD9742ACPZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC DAC 12BIT A-OUT 32LFCSP
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: TxDAC®
In Stock:6300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AD9742ACPZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 6300 pieces of AD9742ACPZ in stock available now. Submit an inquiry for AD9742ACPZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTxDAC®
PackageTray
Part StatusActive
Number of Bits12
Number of D/A Converters1
Settling Time11ns (Typ)
Output TypeCurrent - Unbuffered
Differential OutputYes
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog2.7V ~ 3.6V
Voltage - Supply, Digital2.7V ~ 3.6V
INL/DNL (LSB)±0.5, ±0.4
ArchitectureCurrent Source
Operating Temperature-40°C ~ 85°C
Package / Case32-WFQFN Exposed Pad, CSP
Supplier Device Package32-LFCSP-WQ (5x5)
Mounting TypeSurface Mount
