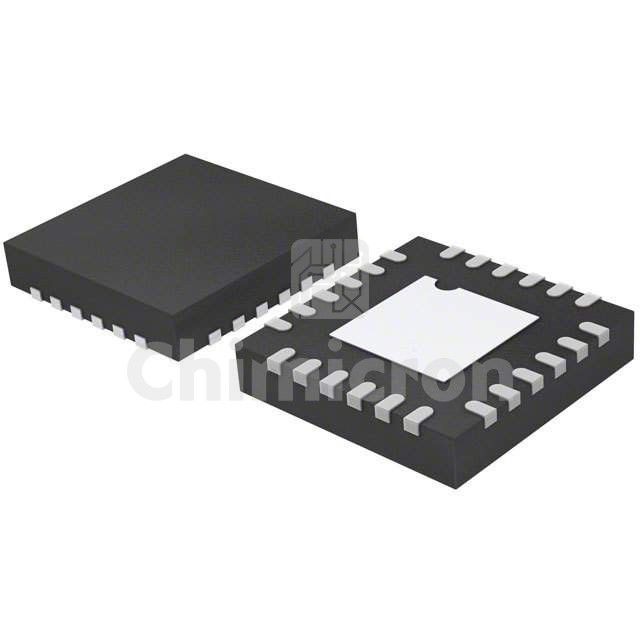

AD5760BCPZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC DAC 16BIT V-OUT 24LFCSP
Category : Integrated Circuits
Family: Data Acquisition - Digital to Analog Converters (DAC)
Series: -
In Stock:3836
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AD5760BCPZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 3836 pieces of AD5760BCPZ in stock available now. Submit an inquiry for AD5760BCPZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTray
Part StatusActive
Number of Bits16
Number of D/A Converters1
Settling Time3.5µs (Typ)
Output TypeVoltage - Unbuffered
Differential OutputNo
Data InterfaceSPI, DSP
Reference TypeExternal
Voltage - Supply, Analog7.5V ~ 16.5V, -2.5V ~ 16.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±2 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 125°C
Package / Case24-VFQFN Exposed Pad, CSP
Supplier Device Package24-LFCSP-VQ (4x5)
Mounting TypeSurface Mount
