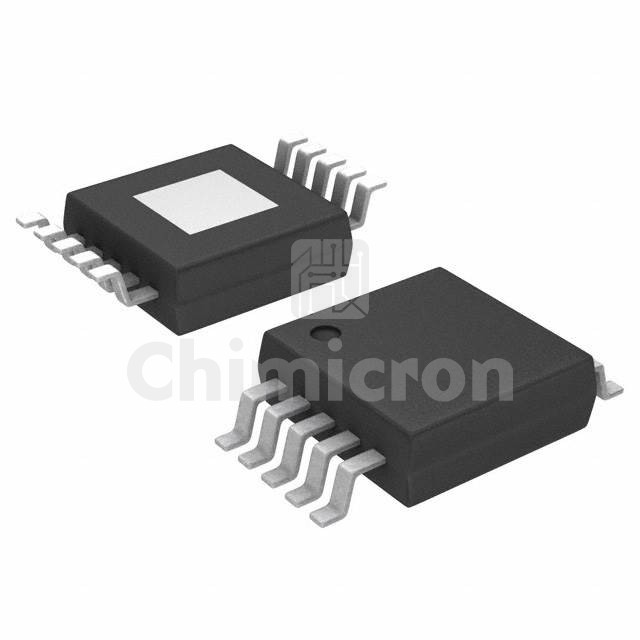

TPS40211DGQR
Manufacturer: Texas
Description: IC REG CTRLR MULT TOP 10MSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:13125
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS40211DGQR Texas at chimicron.com. We have 13125 pieces of TPS40211DGQR in stock available now. Submit an inquiry for TPS40211DGQR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Flyback, SEPIC
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)4.5V ~ 52V
Frequency - Switching35kHz ~ 1MHz
Duty Cycle (Max)-
Synchronous RectifierNo
Clock SyncYes
Serial Interfaces-
Control FeaturesEnable, Frequency Control, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package10-MSOP-PowerPad
