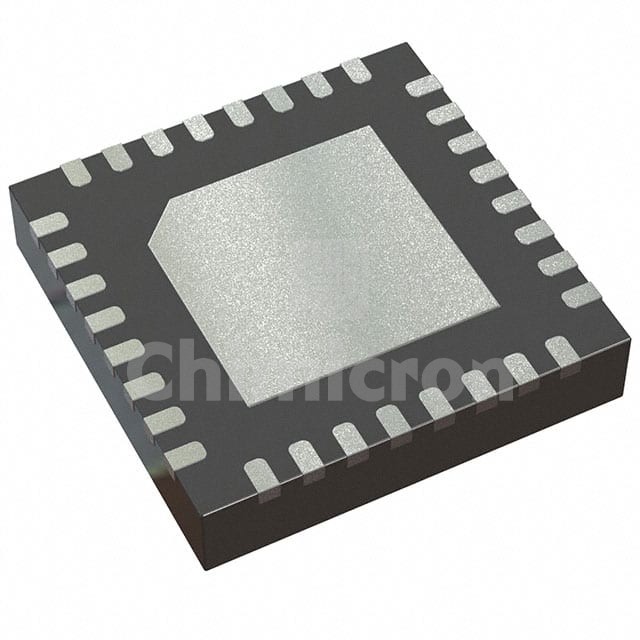

MAX15301AA02+CJK
Manufacturer: Maxim Integrated
Description: IC REG CTRLR BUCK PMBUS 32TQFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:5006
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX15301AA02+CJK Maxim Integrated at chimicron.com. We have 5006 pieces of MAX15301AA02+CJK in stock available now. Submit an inquiry for MAX15301AA02+CJK or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)4.5V ~ 14V
Frequency - Switching300kHz ~ 1MHz
Duty Cycle (Max)95%
Synchronous RectifierYes
Clock SyncYes
Serial InterfacesPMBus
Control FeaturesCurrent Limit, Enable, Power Good
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case32-WFQFN Exposed Pad
Supplier Device Package32-TQFN (5x5)
