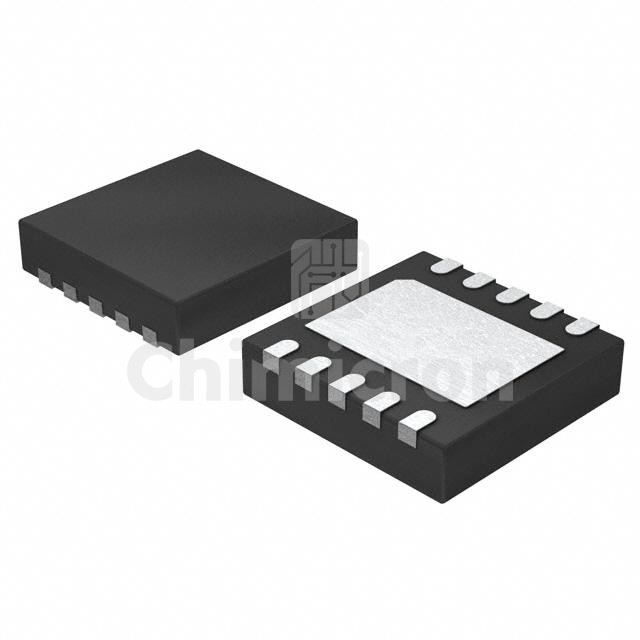

LTC3805IDD#TRPBF
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG CTRLR FLYBACK 10DFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:8925
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LTC3805IDD#TRPBF Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 8925 pieces of LTC3805IDD#TRPBF in stock available now. Submit an inquiry for LTC3805IDD#TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive, Isolation Capable
TopologyFlyback
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)3.95V ~ 9.5V
Frequency - Switching70kHz ~ 700kHz
Duty Cycle (Max)80%
Synchronous RectifierNo
Clock SyncYes
Serial Interfaces-
Control FeaturesEnable, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WFDFN Exposed Pad
Supplier Device Package10-DFN (3x3)
