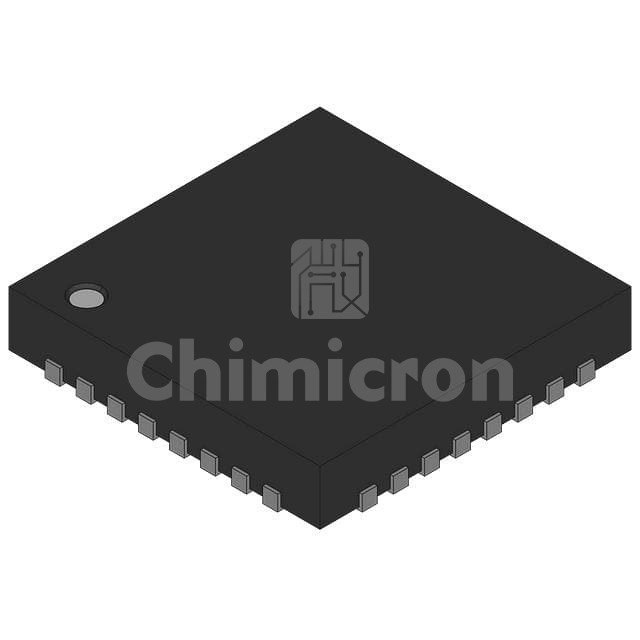

LTC7813EUH#TRPBF
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG CTRLR BUCK/BOOST
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:2625
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LTC7813EUH#TRPBF Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2625 pieces of LTC7813EUH#TRPBF in stock available now. Submit an inquiry for LTC7813EUH#TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Down
Output ConfigurationPositive
TopologyBuck, Boost
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)4.5V ~ 60V
Frequency - Switching105kHz ~ 835kHz, 350kHz ~ 535kHz
Duty Cycle (Max)96%, 99%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesEnable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case32-WFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
