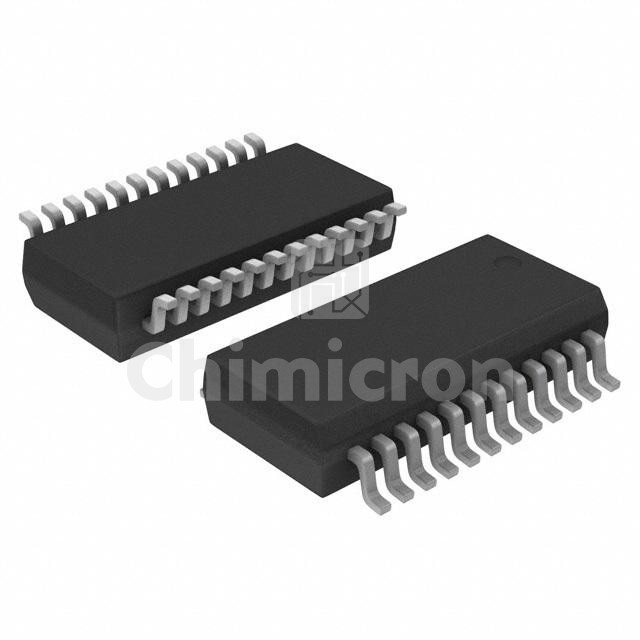

LTC3780EG#PBF
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG CTRLR BUCK-BOOST 24SSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LTC3780EG#PBF Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 50000 pieces of LTC3780EG#PBF in stock available now. Submit an inquiry for LTC3780EG#PBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyBuck-Boost
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)4V ~ 30V
Frequency - Switching200kHz ~ 400kHz
Duty Cycle (Max)99%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Power Good, Soft Start
Operating Temperature-40°C ~ 85°C (TJ)
Mounting TypeSurface Mount
Package / Case24-SSOP (0.209", 5.30mm Width)
Supplier Device Package24-SSOP
