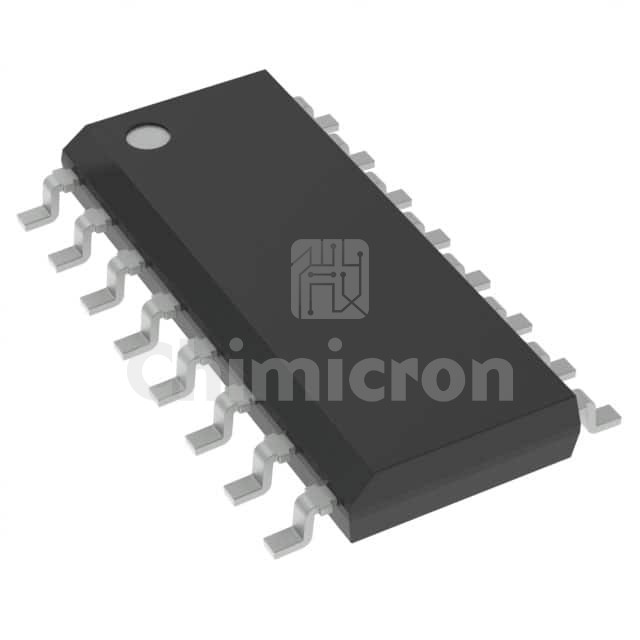

SG3525AP013TR
Manufacturer: STMicroelectronics
Description: IC REG CTRLR BCK/PSH-PULL 16SOIC
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SG3525AP013TR STMicroelectronics at chimicron.com. We have 21000 pieces of SG3525AP013TR in stock available now. Submit an inquiry for SG3525AP013TR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Down, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBuck, Push-Pull
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8V ~ 35V
Frequency - Switching100Hz ~ 400kHz
Duty Cycle (Max)49%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesEnable, Soft Start
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SO
