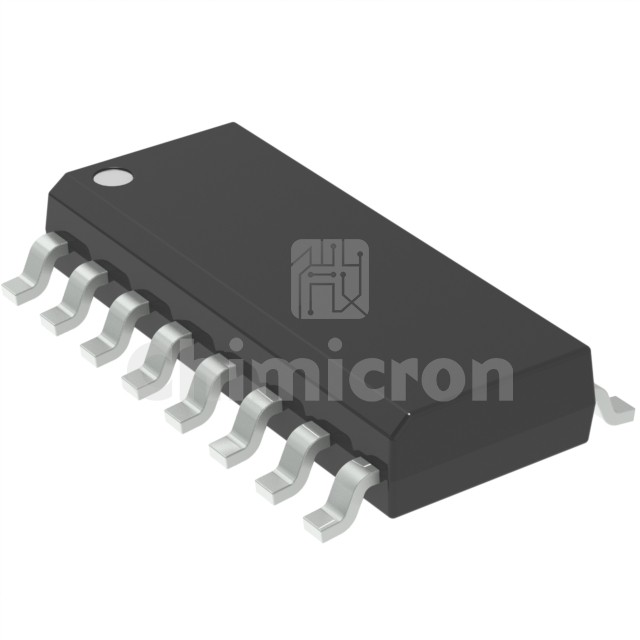

TL594CDG
Manufacturer: Rochester Electronics
Description: SWITCHING CONTROLLER
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: SWITCHMODE™
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TL594CDG Rochester Electronics at chimicron.com. We have 1000 pieces of TL594CDG in stock available now. Submit an inquiry for TL594CDG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSWITCHMODE™
PackageTube
Part StatusObsolete
Output TypeTransistor Driver
FunctionStep-Down, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBuck, Push-Pull
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)7V ~ 40V
Frequency - Switching300kHz
Duty Cycle (Max)96%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesDead Time Control, Frequency Control
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
