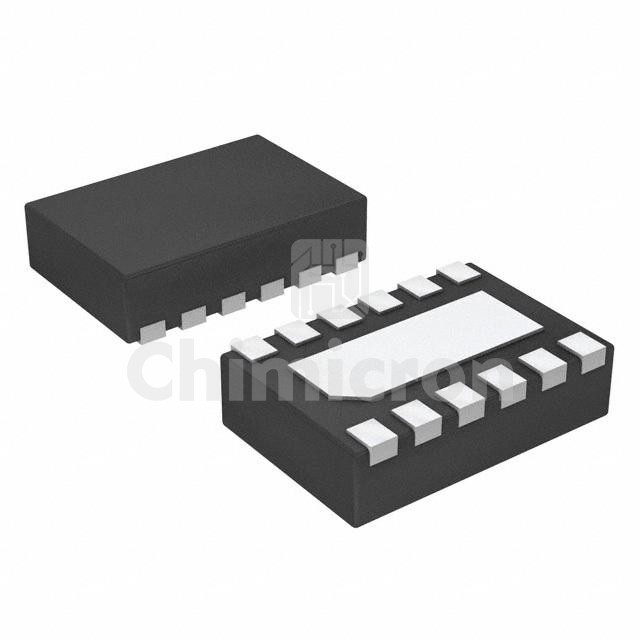

LM5155DSSR
Manufacturer: Texas
Description: POWER MANAGEMENT
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:70985
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5155DSSR Texas at chimicron.com. We have 70985 pieces of LM5155DSSR in stock available now. Submit an inquiry for LM5155DSSR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Flyback, SEPIC
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)2.97V ~ 45V
Frequency - Switching100kHz ~ 2.2MHz
Duty Cycle (Max)93%
Synchronous RectifierNo
Clock SyncYes
Serial Interfaces-
Control FeaturesSoft Start
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case12-WFDFN Exposed Pad
Supplier Device Package12-WSON (3x2)
