MAX5974DETE+T
Manufacturer: Maxim Integrated
Description: IC REG CTRLR MULT TOP 16TQFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:18375
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX5974DETE+T Maxim Integrated at chimicron.com. We have 18375 pieces of MAX5974DETE+T in stock available now. Submit an inquiry for MAX5974DETE+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive, Isolation Capable
TopologyFlyback, Forward Converter
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)8.4V ~ 26V
Frequency - Switching100kHz ~ 600kHz
Duty Cycle (Max)80%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesDead Time Control, Enable, Frequency Control, Soft Start
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

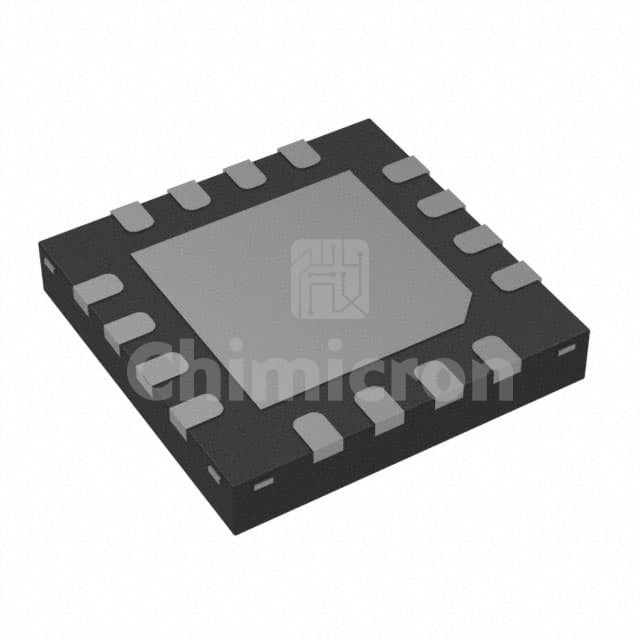

Package / Case16-WFQFN Exposed Pad
Supplier Device Package16-TQFN (3x3)
