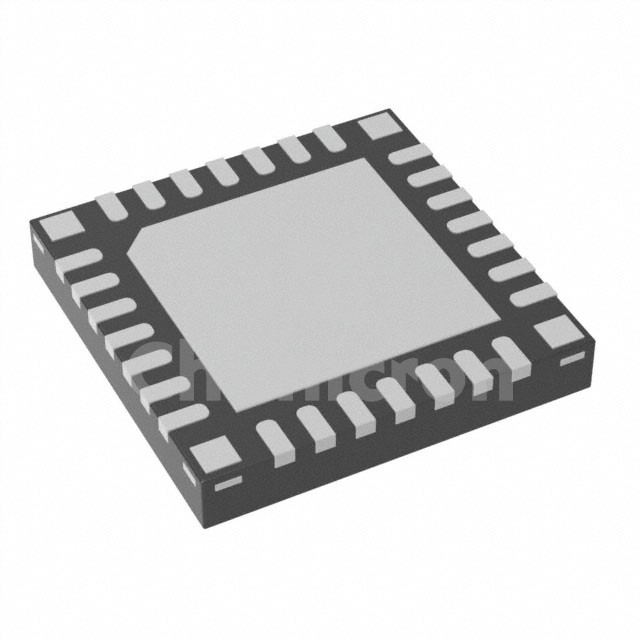

LM5036RJBR
Manufacturer: Texas
Description: HALF BRIDGE CONTROLLER W/INTEGRA
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:15000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5036RJBR Texas at chimicron.com. We have 15000 pieces of LM5036RJBR in stock available now. Submit an inquiry for LM5036RJBR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output TypePWM
FunctionStep-Up/Step-Down
Output ConfigurationPositive, Isolation Capable
TopologyHalf-Bridge
Number of Outputs2
Output Phases2
Voltage - Supply (Vcc/Vdd)7.5V ~ 8.1V
Frequency - Switching2MHz
Duty Cycle (Max)50%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesCurrent Limit, Frequency Control, Ramp
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case28-WFQFN Exposed Pad
Supplier Device Package28-WQFN (5x5)
