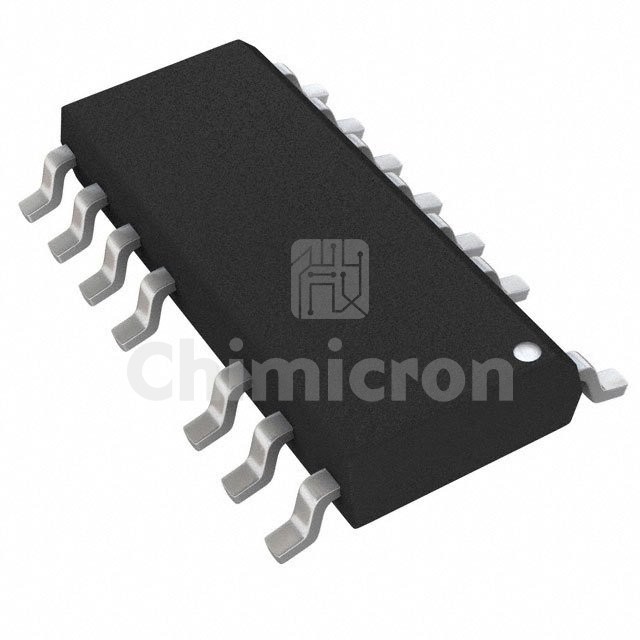

UCC25630-2DDBT
Manufacturer: Texas
Description: HALF BRIDGE CONT WITH HV DRIVER
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:37310
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC25630-2DDBT Texas at chimicron.com. We have 37310 pieces of UCC25630-2DDBT in stock available now. Submit an inquiry for UCC25630-2DDBT or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output TypeTransistor Driver
Function-
Output ConfigurationPositive, Isolation Capable
TopologyHalf-Bridge
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)13V ~ 26V
Frequency - Switching35kHz ~ 1MHz
Duty Cycle (Max)50%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesHybrid Hysteretic Control (HHC)
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package14-SOIC
