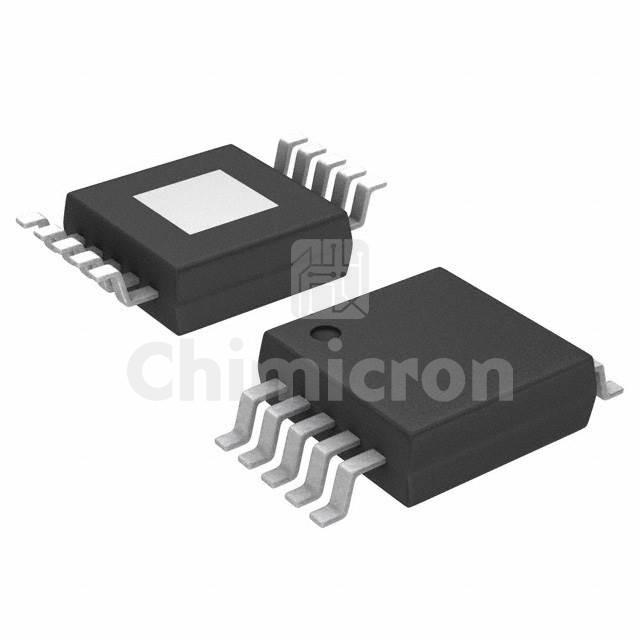

TPS40009DGQR
Manufacturer: Texas
Description: IC REG CTRLR BUCK 10MSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:2575
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS40009DGQR Texas at chimicron.com. We have 2575 pieces of TPS40009DGQR in stock available now. Submit an inquiry for TPS40009DGQR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)2.25V ~ 5.5V
Frequency - Switching600kHz
Duty Cycle (Max)93%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Soft Start
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package10-MSOP-PowerPad
