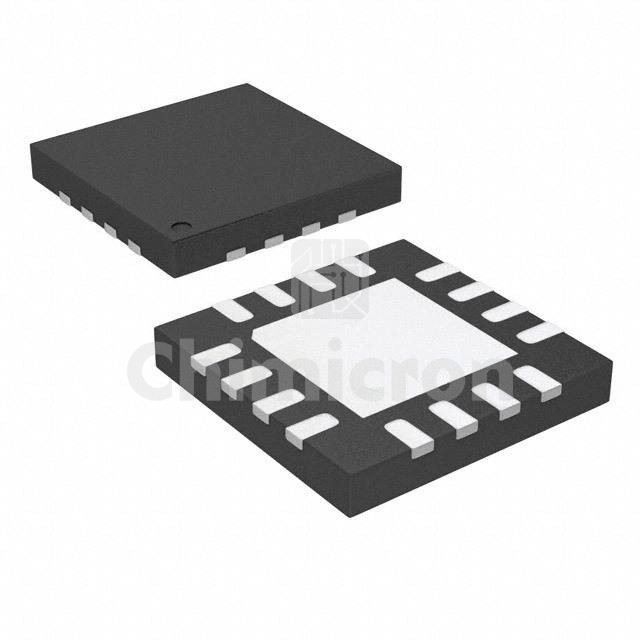

LTC3786EUD#PBF
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG CTRLR MULT TOPOLOGY 16QFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LTC3786EUD#PBF Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 5250 pieces of LTC3786EUD#PBF in stock available now. Submit an inquiry for LTC3786EUD#PBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Flyback, SEPIC
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)4.5V ~ 38V
Frequency - Switching105kHz ~ 760kHz
Duty Cycle (Max)96%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-WFQFN Exposed Pad
Supplier Device Package16-QFN-EP (3x3)
