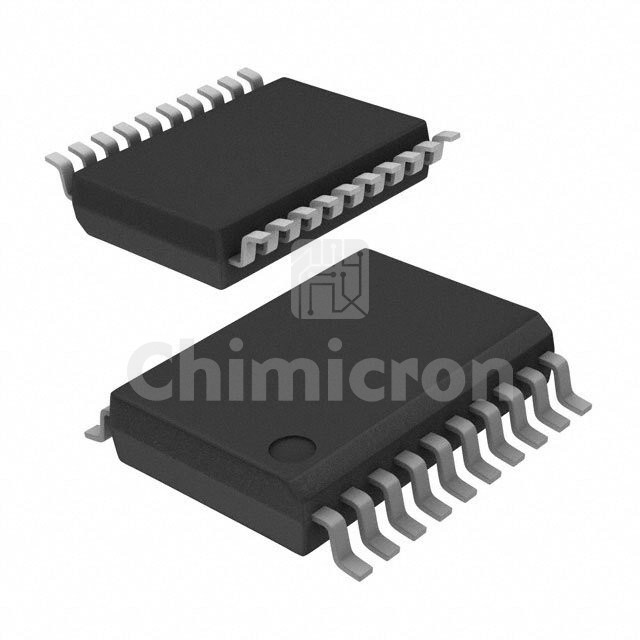

LT1683IG#PBF
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC REG CTRLR PUSH-PULL 20SSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LT1683IG#PBF Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 5000 pieces of LT1683IG#PBF in stock available now. Submit an inquiry for LT1683IG#PBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive and Negative
TopologyPush-Pull
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)7.3V ~ 20V
Frequency - Switching250kHz
Duty Cycle (Max)46%
Synchronous RectifierNo
Clock SyncYes
Serial Interfaces-
Control FeaturesEnable, Frequency Control, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
