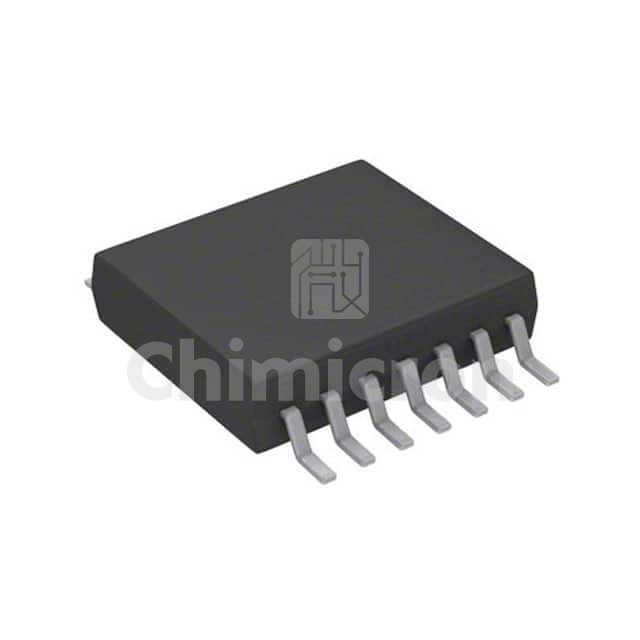

LM5156HQPWPRQ1
Manufacturer: Texas
Description: 2.2MHZ WIDE VIN AUTOMOTIVE NON-S
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: Automotive, AEC-Q100
In Stock:23100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LM5156HQPWPRQ1 Texas at chimicron.com. We have 23100 pieces of LM5156HQPWPRQ1 in stock available now. Submit an inquiry for LM5156HQPWPRQ1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Flyback, SEPIC
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)2.97V ~ 60V
Frequency - Switching100kHz ~ 2.2MHz
Duty Cycle (Max)93%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package14-HTSSOP
